Folder Method of mounting N-205 Mini Network inside of a

Method of mounting N-205 Mini Network inside of a

Documents

pdf Method of mounting N-205 Mini Network inside of a B1/102 set. N205 B1 Tl Popular

1521 downloads

Method of mounting N-205 Mini Network inside of a B1/102 set. N205 B1 Tl

Wiring for WE dials and handset. mini-network. Methods and drawings provided by Ray Kotke.

pdf Method of mounting N-205 Mini Network inside of a B1/102 set. 102mtg Tl Popular

1475 downloads

Method of mounting N-205 Mini Network inside of a B1/102 set. 102mtg Tl

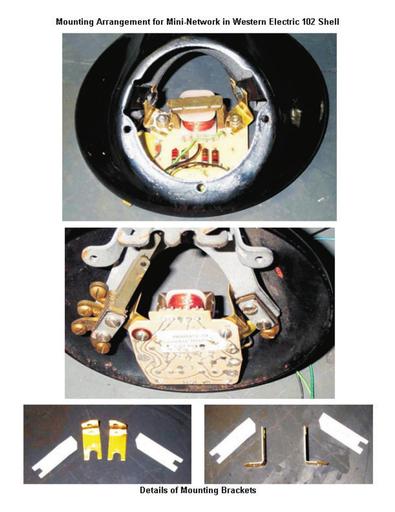

Photo Detail of Mounting Brackets and Installation Layout. mini-network. Methods and drawings provided by Ray Kotke.

pdf Method of mounting N-205 Mini Network inside of a B1/102 set. Network Tl Popular

1380 downloads

Method of mounting N-205 Mini Network inside of a B1/102 set. Network Tl

Mounting Bracket dimensions and mini-network wire ID. Methods and drawings provided by Ray Kotke.

pdf Method of mounting N-205 Mini Network inside of a B1/102 set. Schematic Tl Popular

1461 downloads

Download (pdf, 78 KB)

schematic_tl.pdf

Method of mounting N-205 Mini Network inside of a B1/102 set. Schematic Tl

Schematics for WE or AE dials or manual. mini-network. Methods and drawings provided by Ray Kotke.
